Modular Bespoke acoustic housings for generator sets, pumps, and other industrial machinery. Designed, manufactured, and fit-out to your exact project specification.
The QSK (Quick Smart Kit) is a modular, fully customizable enclosure solution for generators and DRUPS, engineered for high-power applications up to 6 MW. Designed for critical environments, it offers seamless integration, easy installation, and low maintenance, it ensures optimal performance, compliance, and long-term reliability.

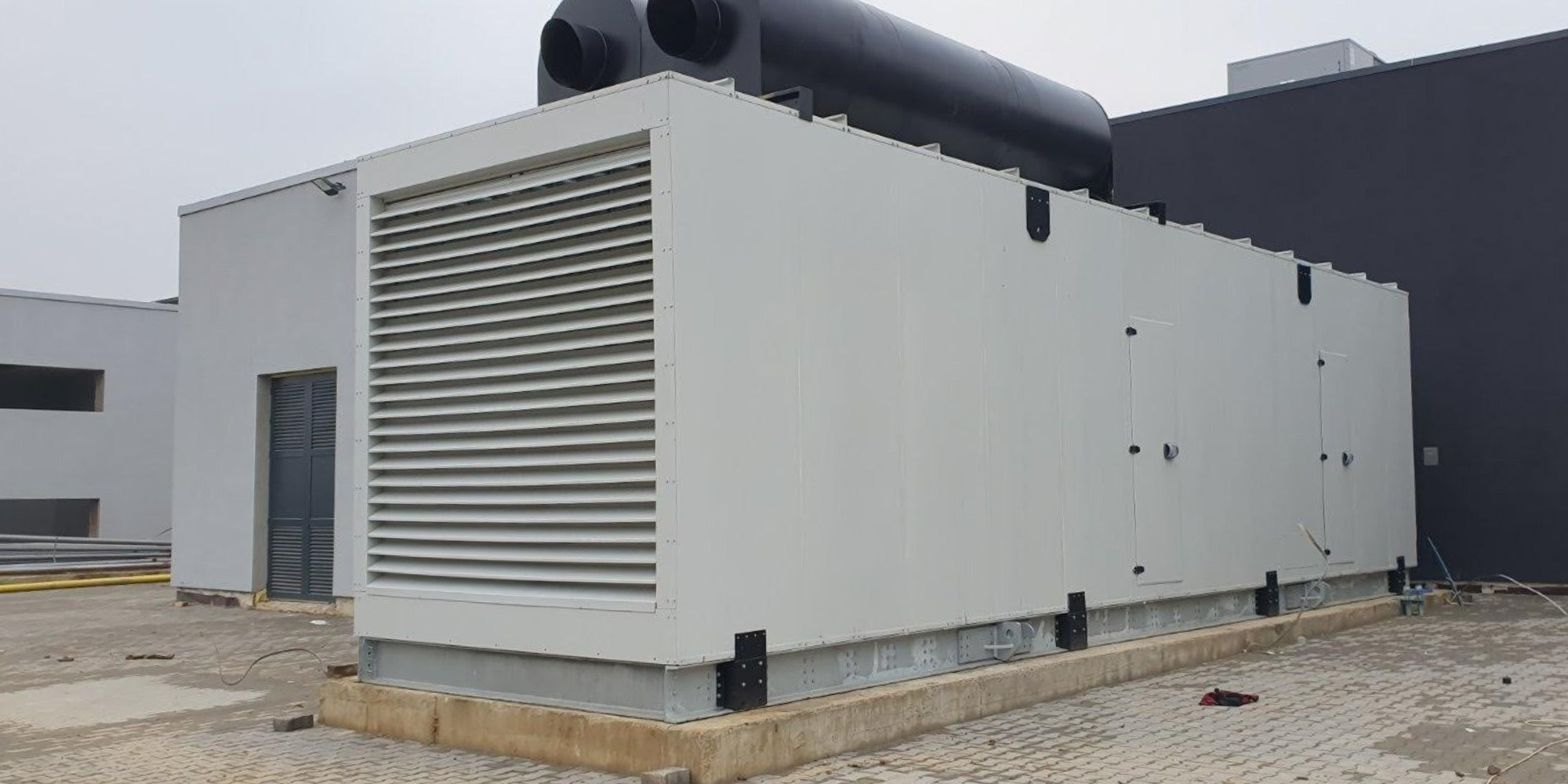

The QSK Enclosure System enables direct installation, cabling and testing of open-set gensets on their own skid, including fuel tank. Eliminating structural constraints thanks to a fully removable panel architecture that ensures complete accessibility and faster integration at every stage, everywhere.
Up to 60 dBA @1m acoustic performance enables installation in noise-sensitive areas, supported by REI 120/240 fire protection and heavy-duty modular construction, with ATEX configuration available and a wide range of accessories including sand traps, motorized dampers, specialized ventilation systems and custom integrations for demanding environments
Fully welded heavy-duty steel base frame with 4 integrated lifting points, designed to safely handle and lift the complete genset and enclosure
Baseframe with integrated high-capacity double skin fuel tank, including dedicated compartments for Urea and filtration systems
Drop-over canopy solution designed for direct floor anchoring

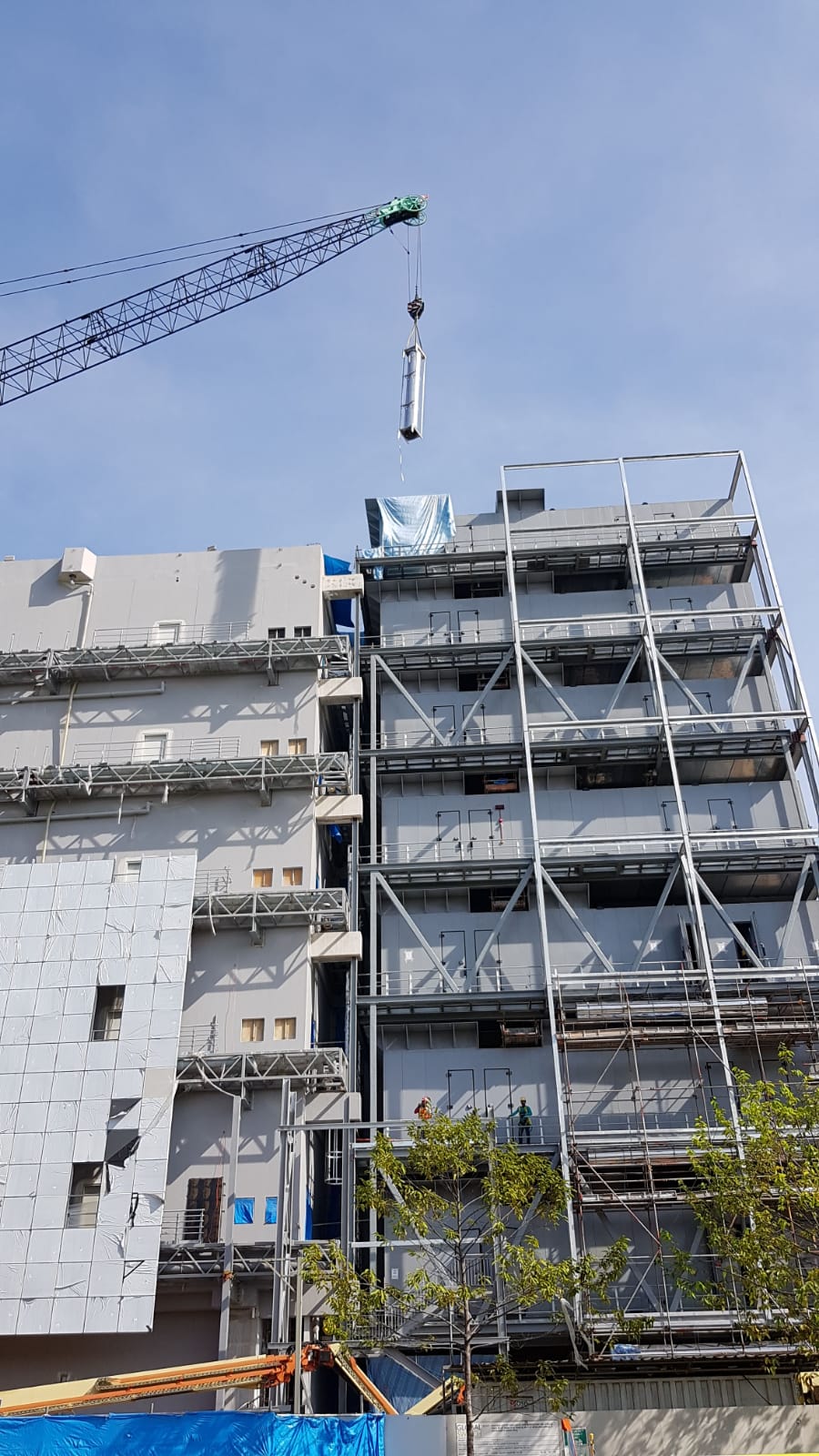

The QSK Enclosure is engineered for high-demand power applications such as data centers and industrial infrastructure environments. It can accommodate multiple gensets within a single modular structure and supports synchronized operation, load sharing, delivering scalable power output, enhanced reliability and maximum operational flexibility within a purpose-built solution.
| Dimensions | Custom modular enclosures for gensets up to 6 MW, including diesel, gas, hybrid, and DRUPS systems |
| Structure | Robust and flexible solutions, with materials and configurations adaptable to any project |
| Painting and Coating | High-performance finishes, with painting and anti-corrosion treatments up to C5 grade to ensure durability even in extreme environments |
| Protection | Sealing grades up to IP65, resistant to weather and dust, with additional options for enhanced safety |
| Wind resistance | Withstands up to 160 km/h wind loads |
| Fire Safety | Fire detection and suppression solutions, customized according to regulations and project requirements |
| Certifications | Compliance with major international standards, including ISO, UNI, ATEX, and other safety regulations |
Our solutions reduce generator noise to meet even the most stringent regulatory requirements, reaching levels below 60 dB(A). Each project is custom-developed to ensure acoustic comfort and full compliance worldwide.
| Noise level | Up to 60 dBA @ 1 meter, configurable for stricter noise limits |
| Custom Acoustic Solutions | Tailored noise reduction packages available for specific project requirements |
| Ventilation Type | Natural, forced, or hybrid systems for critical environments |
| Air Intake | High-capacity louvers with optional sand traps, dust filters, and humidity control |
| Air Discharge | Aerodynamically optimized silencers for noise reduction and cooling efficiencу. |
| Cooling Compatibility | Supports radiator, heat exchanger, and remote cooling configurations |
| Standard | 15–20 m³/s | Max +10°C over ambient |
| Enhanced | 25–30 m³/s | Max +5°C over ambient |
| Extreme | over 35 m³/s | Custom-engineered |
| Max Temperature | Operates in ambient conditions up to 55°С, adaptable for extreme climates |
| Sealing & IP Rating | IP54-IP65, resistant to water, dust, and harsh environments |
| Extreme Conditions | Engineered for sandstorms, high humidity, and corrosive atmospheres |
| Filtration Options | Multi-stage air filtration and anticondensation systems available |
| Fire Safety | Compatible with fire suppression and emergency ventilation systems |
| Regulatory Compliance | Engineered for sandstorms, high humidity, and corrosive atmospheres |
